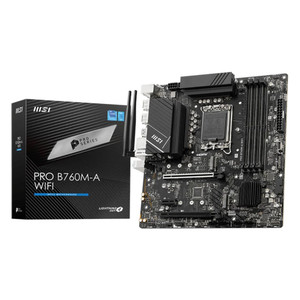

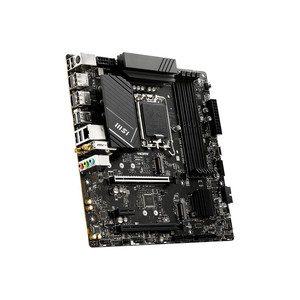

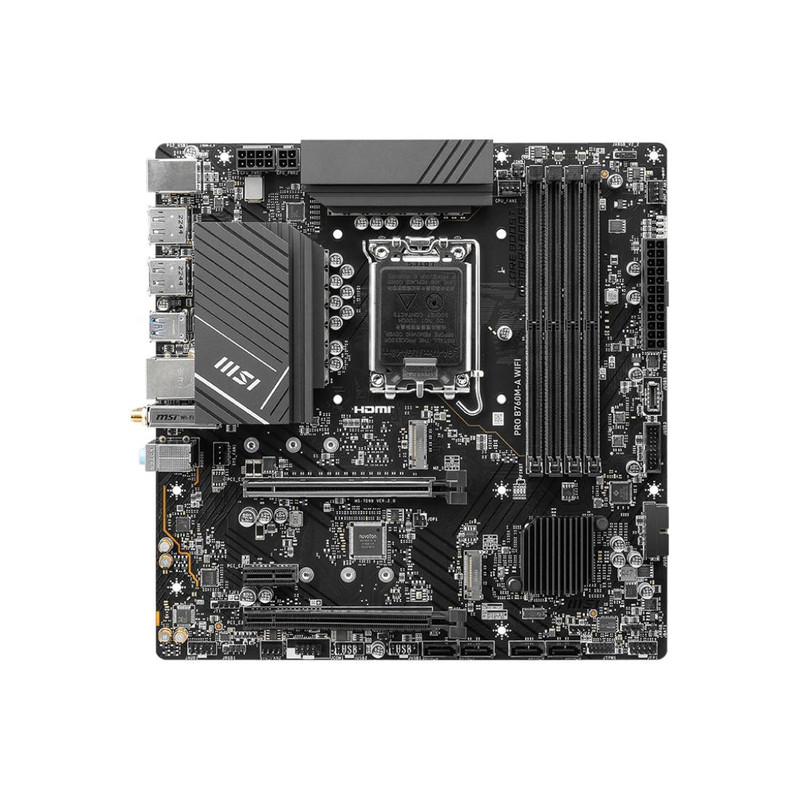

MSI PRO B760M-A WIFI DDR5 LGA 1700 Intel Micro-ATX Gaming Motherboard – اللوحة الأم

MSI PRO B760M-A WIFI DDR5 LGA 1700 Intel Micro-ATX Gaming Motherboard – اللوحة الأم

$158.99

SKU: 10322287821442 Categories: , , , , , , , , , ,
CPU Intel
Socket Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Back Panel I/O Keyboard / Mouse
DisplayPort
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
Memory Slots 4x DDR5, Maximum Memory Capacity 256GB
Storage Expansion 2x M.2
4x SATA 6G
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Back Panel I/O Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Wireless

ntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Software Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions mATX
243.84mmx243.84mm
