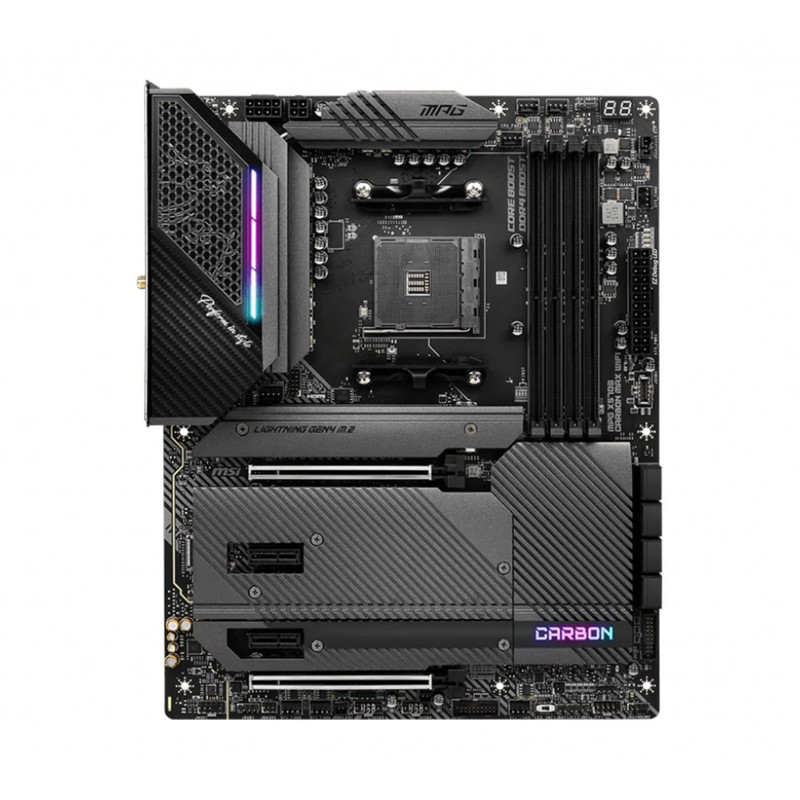

MSI MPG X570S Carbon Max WIFI – AM4 AMD Motherboard – اللوحة الأم
$359.99
Description:
- Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
- Supports DDR4 Memory, up to 5300+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

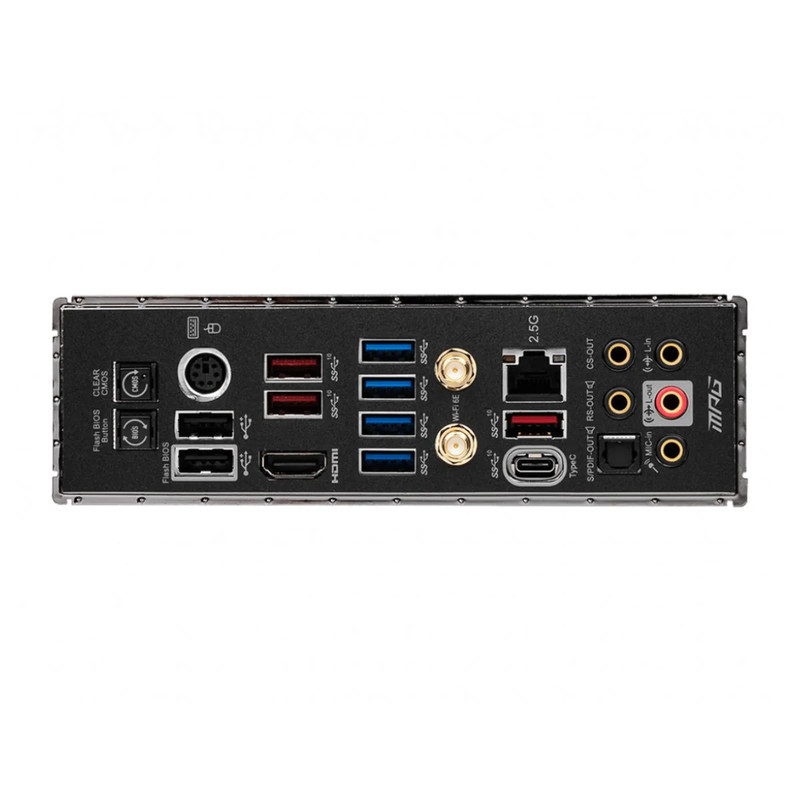

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications
CPU (MAX SUPPORT) |
Ryzen 9 |
SOCKET |
AM4 |
CHIPSET |
AMD X570 Chipset |
DDR4 MEMORY |
5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz |
MEMORY CHANNEL |
Dual |
DIMM SLOTS |
4 |
MAX MEMORY (GB) |
128 |
PCI-E X16 |
2 |
PCI-E X1 |
2 |
SATAIII |
8 |
M.2 SLOT |
4 |
RAID |
0/1/10 |
LAN |
1x Realtek® 8125B 2.5G LAN |
WIFI & BLUETOOTH |
Intel® Wi-Fi 6E AX210 |
USB 3.2 PORTS (FRONT) |
1(Gen 2, Type C), 4(Gen 1, Type A) |
USB 3.2 PORTS (REAR) |
1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A) |
USB 2.0 PORTS (FRONT) |
4 |
USB 2.0 PORTS (REAR) |
2 |
DIMENSION |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
AUDIO PORTS (REAR) |
5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
HDMI |
1 |
DIRECTX |
12 |
FORM FACTOR |
ATX |
CROSSFIRE |
Y |
OPERATING SYSTEM |
Support for Windows® 10 64-bit |
