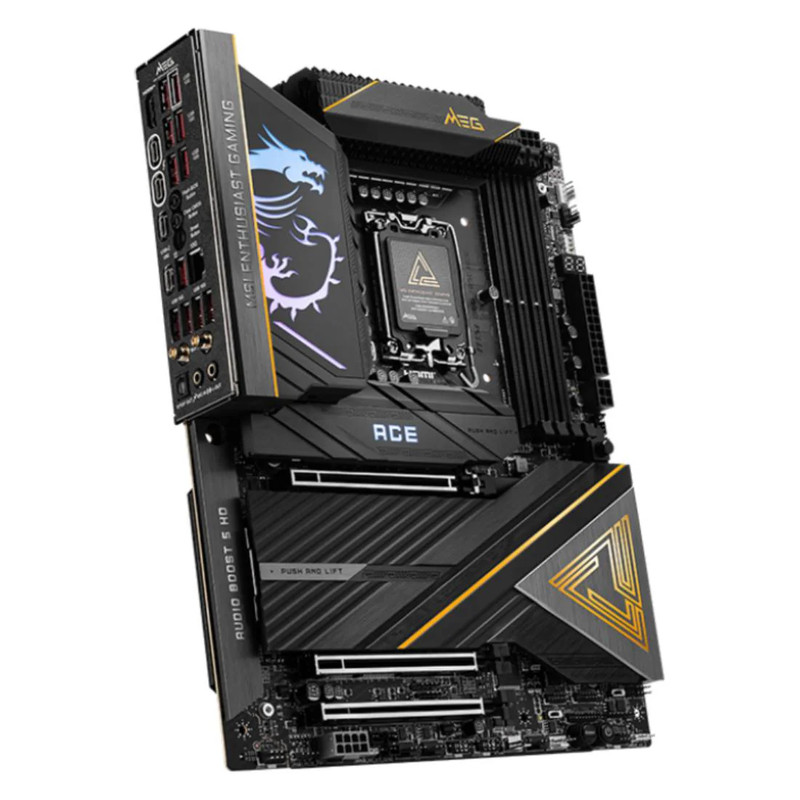

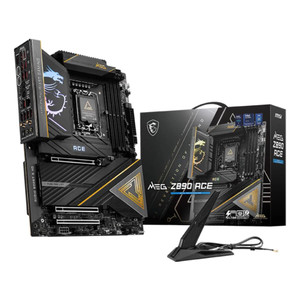

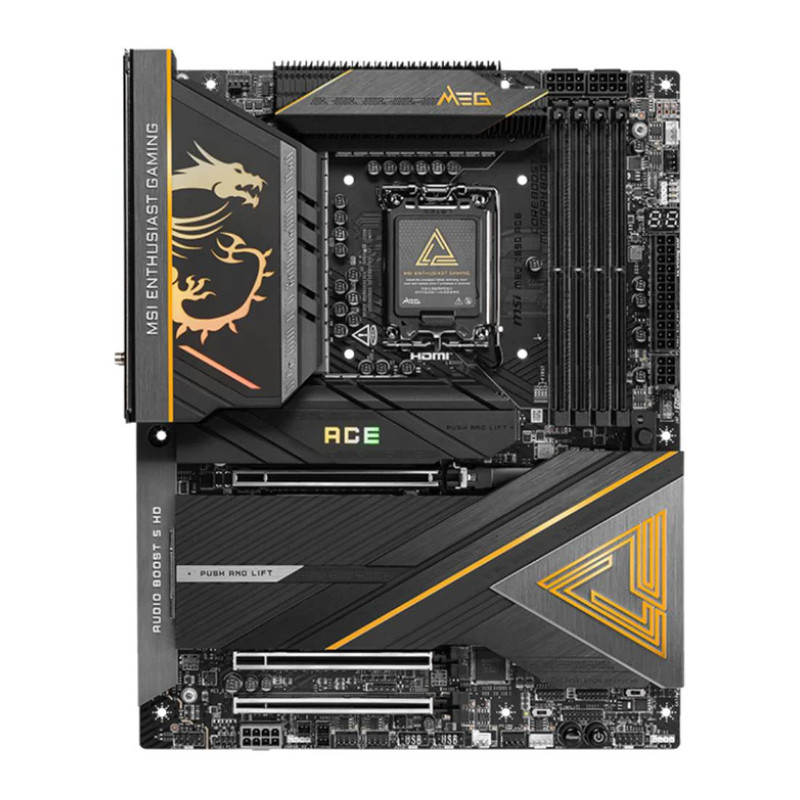

MSI MEG Z890 Ace Wifi DDR5 LGA 1851 Intel ATX Gaming Motherboard – لوحة الأم

MSI MEG Z890 Ace Wifi DDR5 LGA 1851 Intel ATX Gaming Motherboard – لوحة الأم

$929.99

SKU: 10322287711275 Categories: , , , , , , , , , , , ,
CPU Intel
Socket LGA 1851
Memory Slots 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Storage Expansion 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G
Internal I/O 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Back Panel I/O USB 10Gbps (Type-A)
Flash BIOS Button
Clear CMOS Button
Smart Button
10G LAN
Wi-Fi / Bluetooth
HD Audio Connectors
HDMI™ 2.1 Port
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps (Type-C)
USB 10Gbps (Type-A)
Optical S/PDIF-Out
Front Panel I/O 4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Dimensions ATX
Operation Syystem Windows® 11 64-bi
