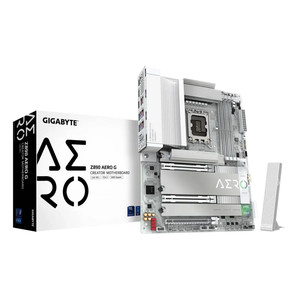

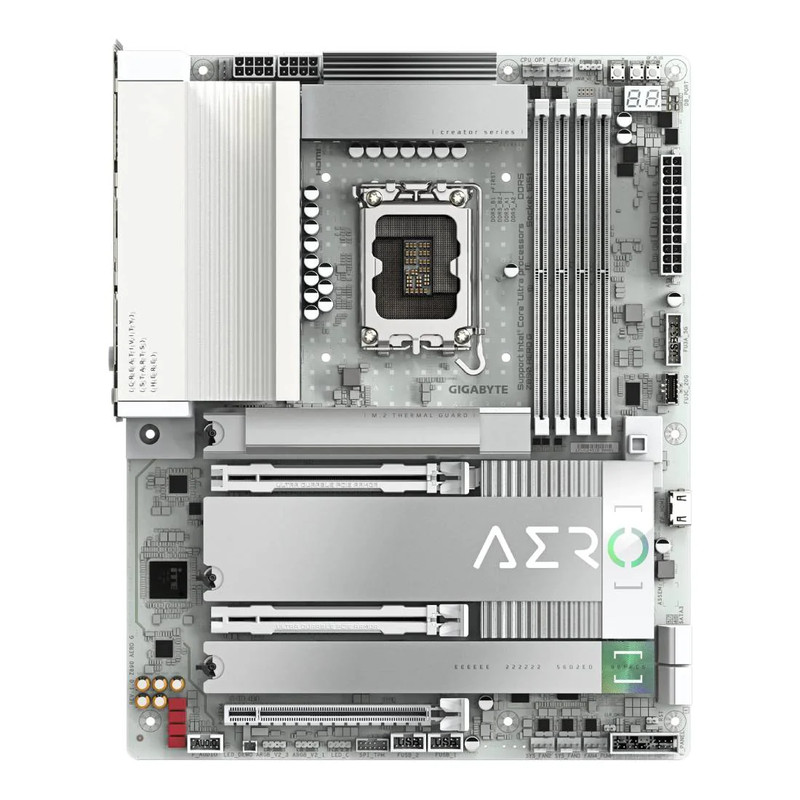

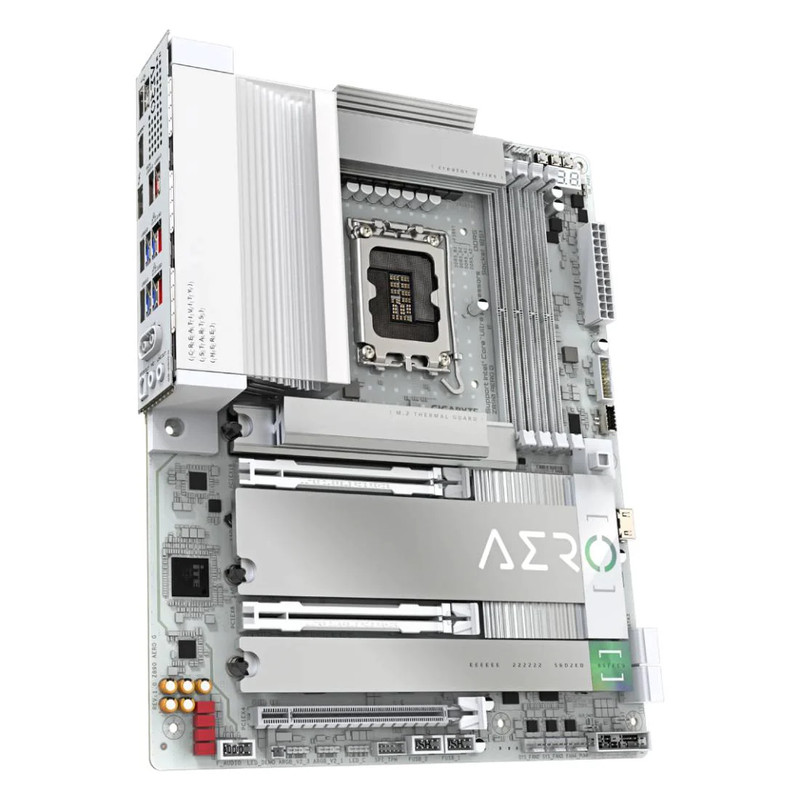

Gigabyte Z890 Aero G DDR5 LGA 1851 ATX Gaming Motherboard – لوحة الأم

Gigabyte Z890 Aero G DDR5 LGA 1851 ATX Gaming Motherboard – لوحة الأم

$468.99

SKU: 10329069547 Categories: , , , , , , , , , , ,
CPU Intel
Socket LGA 1851
Back Panel I/O 2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x RJ-45 ports
4 x USB 3.2 Gen 1 ports
2 x SMA antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Memory Slots 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory
Dual channel memory architecture
Storage Interface – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
– 4 x SATA 6Gb/s connectors
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Audio  Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Wireless Communication module Intel® Wi-Fi 7 BE202 (BE200NGW M)
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Software Windows 11 64-bit
Dimensions ATX
