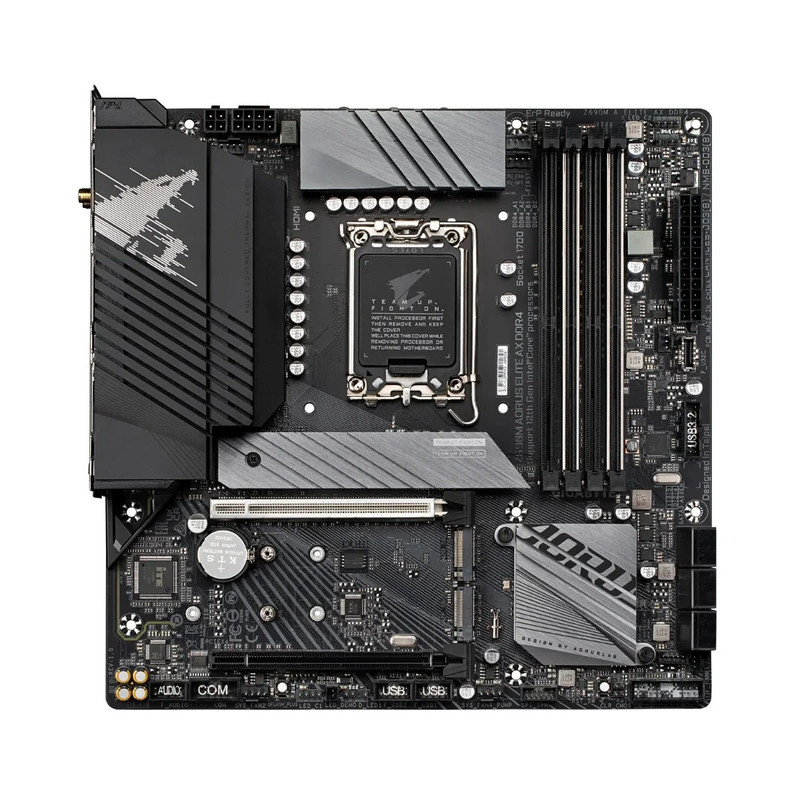

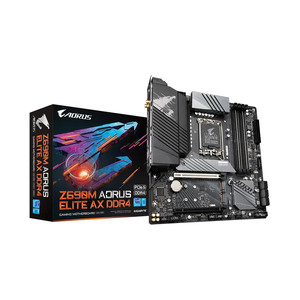

Gigabyte Z690M Aorus Elite AX Wifi – DDR4 LGA 1700 Intel Motherboard – اللوحة الأم

Gigabyte Z690M Aorus Elite AX Wifi – DDR4 LGA 1700 Intel Motherboard – اللوحة الأم

$329.99

SKU: 1031248212824 Categories: , , , , ,

Description:

Model Z690M AORUS ELITE AX
Brand Gigabyte
Supported Processor Support for 12th Generation Intel Core i9 /Intel Core i7 /Intel Core i5 processors
Chipset Intel® Z690 Express Chipset
Socket LGA1700
BIOS 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
Form Factor ATX  Form Factor: 30.5cm x 24.4cm
Memory Type DDR4
Channel Dual-channel
Slot 4 x DDR4 DIMM sockets
Supported Bus Speed Supported Bus Speed DDR4 5333
Maximum Memory UP to 128 GB
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  (Graphics specifications may vary depending on CPU support.)
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10

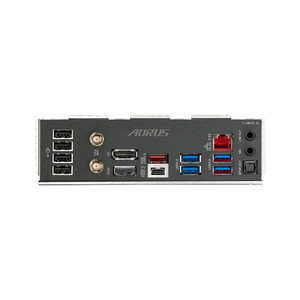

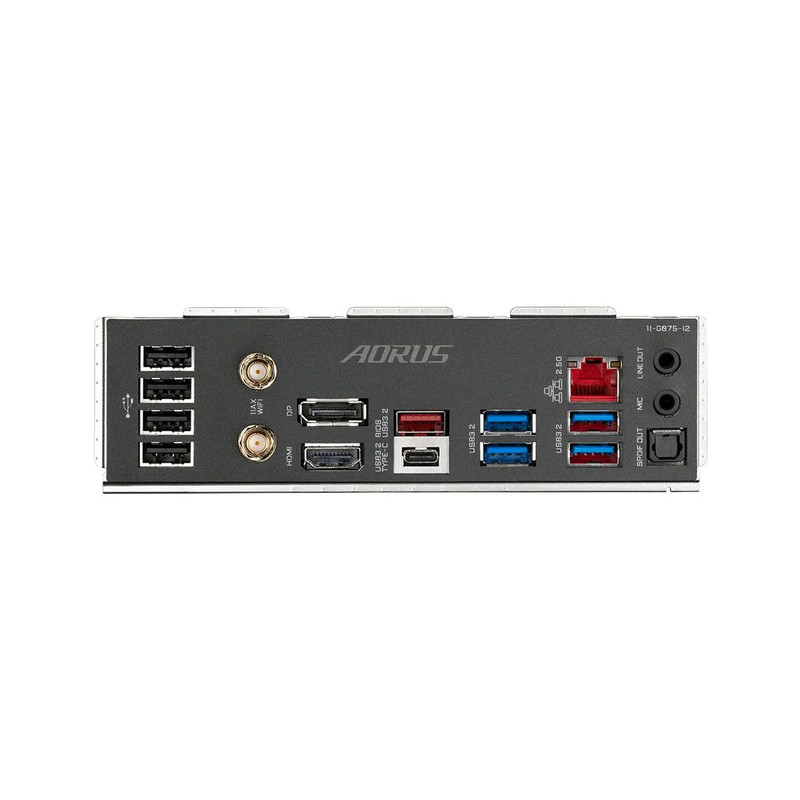

USB Port 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
HDMI Port 1 x HDMI port
DisplayPort 1 x DisplayPort
LAN Port 1 x RJ-45 port
  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Port 2 x audio jacks
SMA Antenna 2 x SMA antenna connectors (2T2R)
S/PDIF 1 x optical S/PDIF Out connector
Wi-Fi Intel® Wi-Fi 6 AX201:
  WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  Bluetooth 5.2
  Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
