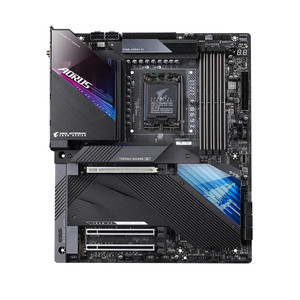

Name: Gigabyte Z690 Aorus Master Wifi - DDR5 LGA 1700 Intel Motherboard - اللوحة الأم
SKU: 1031247812033
Availability: InStock

Socket	LGA 1700
Chipset	Z690
Form Factor	E-ATX
Voltage Regulator	22 Phase (19+1+2, 105A MOSFETs for Vcore)

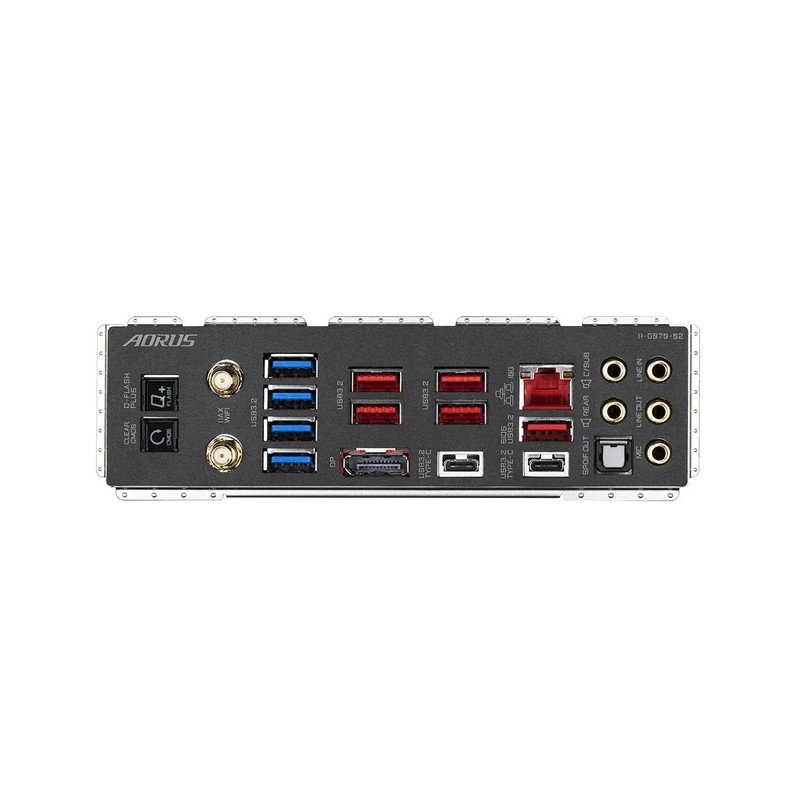

Video Ports	(1) DisplayPort (v1.2)
USB Ports	(1) USB 3.2 Gen 2×2 Type-C port (20 Gbps)
	(1) USB 3.2 Gen 2 Type-C port (10 Gbps)
	(5) USB 3.2 Gen 2 (10 Gbps)
	(4) USB 3.2 Gen 1 (5 Gbps)
Network Jacks	(1) 10 GbE
Audio Jacks	(2) Analog + SPDIF
PCIe x16	(1) v. 5.0 (x16)
	(2) v. 3.0 (x4)
CrossFire/SLI	AMD Quad-GPU CrossFire and 2-Way Crossfire
DIMM slots	(4) DDR5 6400+(OC), 128GB Capacity
M.2 slots	(1) PCIe 4.0 x4 (64 Gbps) / PCIe (up to 110mm)
	(2) PCIe 4.0 x4 (64 Gbps) / PCIe (up to 110mm)
	(1) PCIe 3.0 x4 (32 Gbps) / PCIe (up to 80mm)
	(1) PCIe 4.0 x4 (64 Gbps) / PCIe + SATA (up to 80mm)
SATA Ports	(6) SATA3 6 Gbps (Supports RAID 0/1/5/10)
USB Headers	(1) USB v3.2 Gen 2×2, Type-C (20 Gbps)
	(2) USB v3.2 Gen 1 (5 Gbps)
	(2) USB v2.0 (480 Mbps)
Fan/Pump Headers	(10) 4-Pin (CPU, Water cooling CPU, System, System/Pump fans)
RGB Headers	(2) aRGB Gen2 (3-pin)
	(2) RGB (4-pin)
Diagnostics Panel	2-character debug LED
Internal Button/Switch	Reset button
Ethernet Controller(s)	Marvell AQtion AQC113C (10 Gbps)
Wi-Fi / Bluetooth	Intel AX210 Wi-Fi 6E (2×2 ax, MU-MIMO, 2.4/5/6 GHz, 160 MHz, BT 5.2)
USB Controllers	Realtek RTS5411 (2)
HD Audio Codec	Realtek ALC1220

Gigabyte Z690 Aorus Master Wifi – DDR5 LGA 1700 Intel Motherboard – اللوحة الأم
