Gigabyte Aorus Elite AX X670 Wifi DDR5 AM5 AMD 7th Gen ATX Gaming Motherboard – اللوحة الأم

Gigabyte Aorus Elite AX X670 Wifi DDR5 AM5 AMD 7th Gen ATX Gaming Motherboard – اللوحة الأم

$378.99

SKU: 10322118687604 Categories: , , , , , ,
CPU AMD, support for: AMD Ryzen™ 7000 Series Processors
Socket AM5

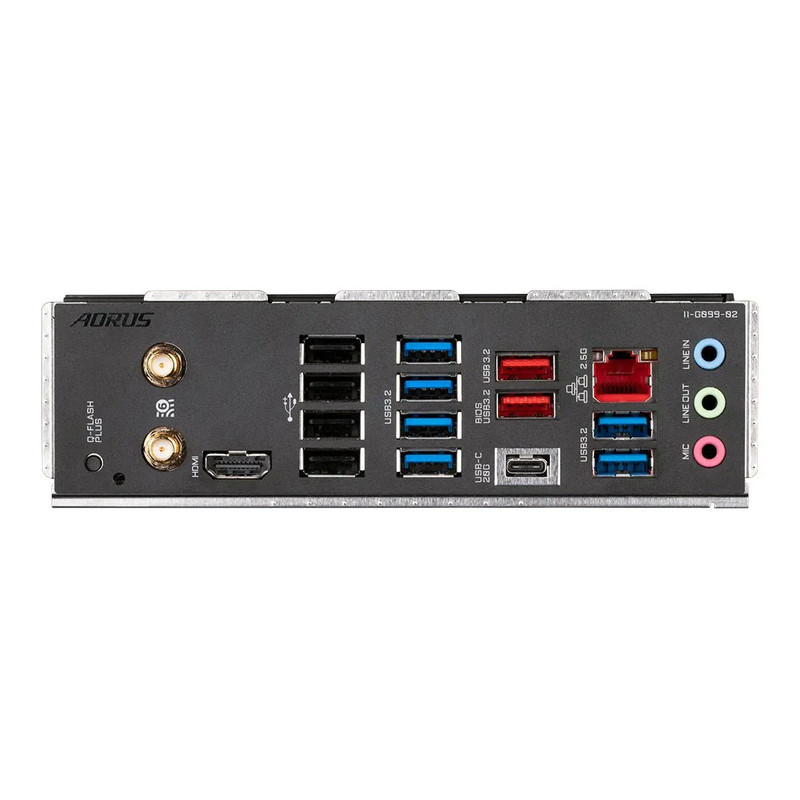

Back Panel I/O 1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI 2.0 port
4. 6 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
8. 1 x RJ-45 port
9. 3 x audio jacks
Memory Slots 4
Internal I/O 1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x CPU cooler LED strip/RGB LED strip header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 4 x SATA 6Gb/s connectors
10. 4 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
14. 2 x USB 3.2 Gen 1 headers
15. 2 x USB 2.0/1.1 headers
16. 1 x THB_U4 add-in card connector
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x power button
19. 1 x reset button
20. 1 x Clear CMOS button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper
Audio 1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wireless AMD Wi-Fi 6E RZ616 (MT7922A22M)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Software 1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Dimensions 1. ATX Form Factor; 30.5cm x 24.4cm
