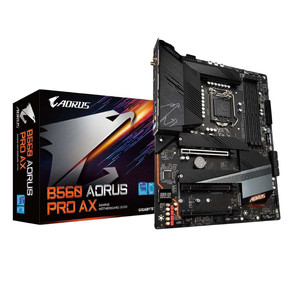

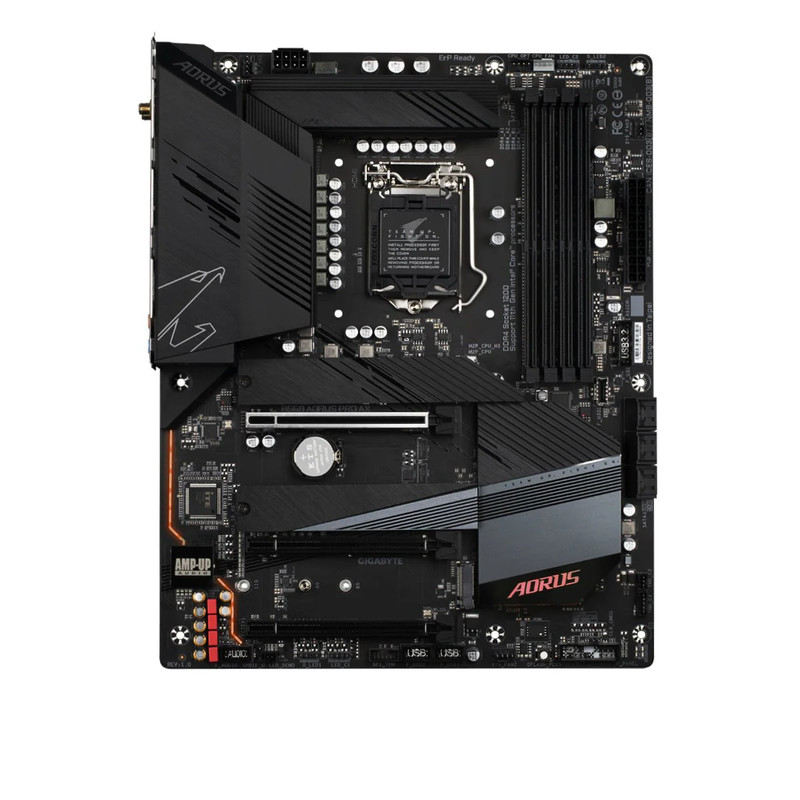

Gigabyte Aorus B560 PRO AX WiFi – DDR4 LGA 1200 Motherboard – اللوحة الأم

Gigabyte Aorus B560 PRO AX WiFi – DDR4 LGA 1200 Motherboard – اللوحة الأم

$314.99

SKU: 1037111044 Categories: , , , , ,

Description:

Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors*

* Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipsets
Chipset  Intel B560
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors)

DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors)

DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 2 x PCI Express 3.0 x16
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2B_SB)

* Supported by 11th Generation processors only.
Intel Optane Ready Yes
Onboard Audio
Audio Chipset  Realtek ALC4080
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5GbE LAN chip
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6 AX200
Wi-Fi 802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.1

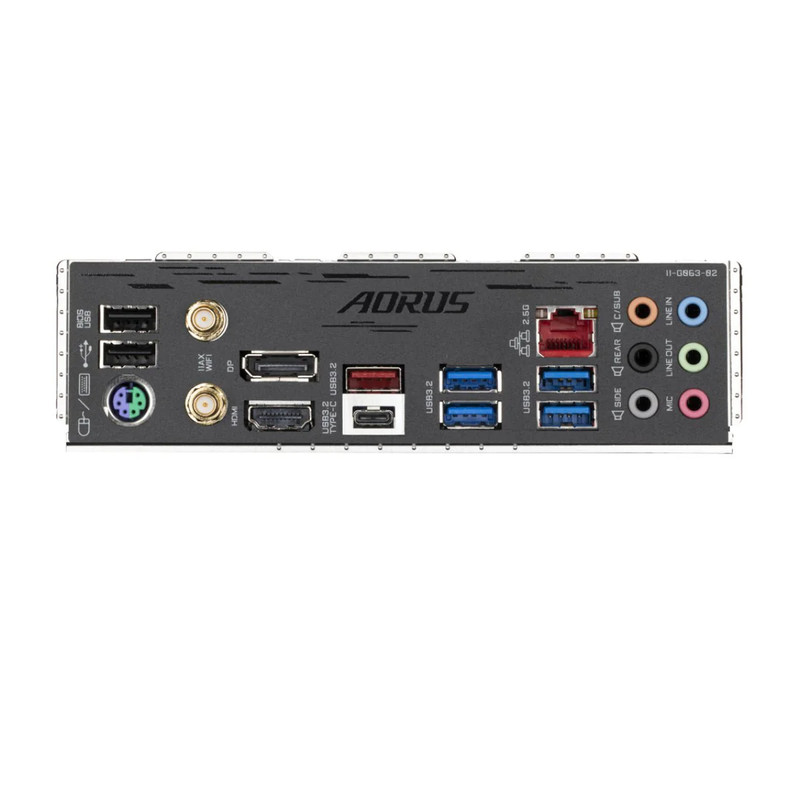

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
