Description:

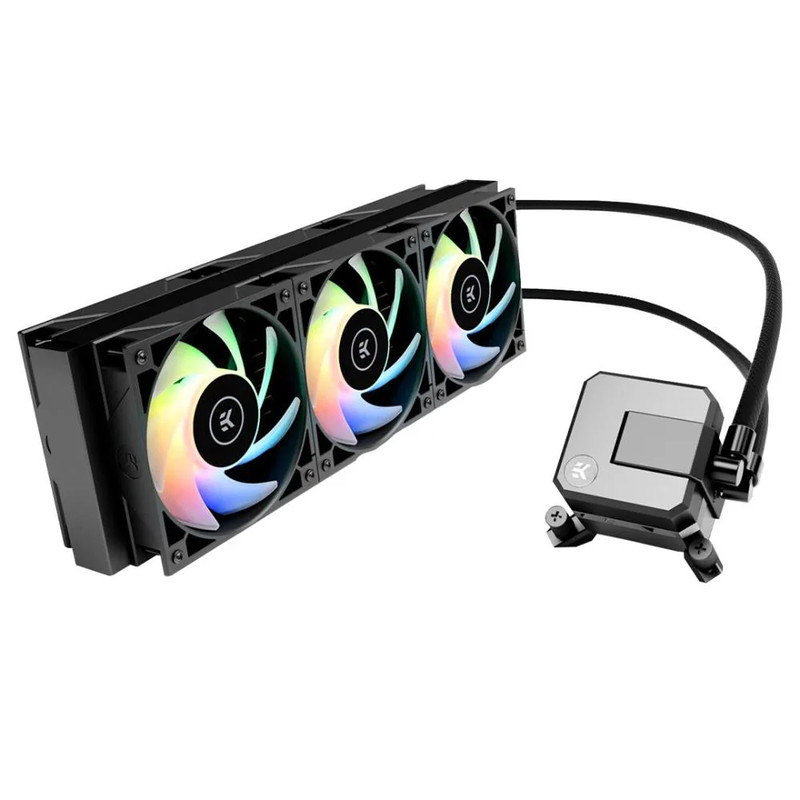

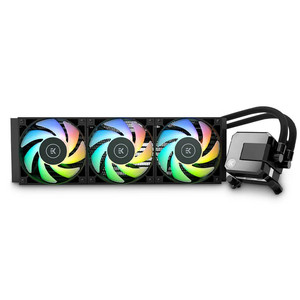

The EK-AIO Elite 360 D-RGB is an all-in-one liquid cooling solution for your CPU. It offers all the benefits of a water-cooling solution in a compact, easy to install, and maintenance-free design. The EK AIO Elite comes with a universally compatible CPU water-block, along with a pre-filled pump-res combo design for a liquid cooling solution that’s ready to go straight out of the box. It’s simple, efficient, and comes with fully customizable D-RGB lighting.

Easy installation with Universal Compatibility – The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO Elite offers compatibility with almost all modern case designs.

Dynamic Addressable D-RGB lighting – Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and six Vardar S fans, the EK AIO Elite offers a range of color configurations controlled from either your motherboard or standalone D-RGB controller. The Black Nickel cover of the pump unit now offers a very elegant look with the subtle hint of D-RGB peeking through the EK logo.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header.

Ultra-durable design with diamond-cut rotary fittings  – The EK AIO comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans – The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 – 2200RPM for either high airflow or silent running. The EK-AIO Elite includes six Vardar fans, which can be utilized to create a push-pull configuration or if there is not enough space, create a better airflow by positioning three of the fans on the case itself.

Cable management – To help manage the cables of EK-Vardar fans, the EK-AIO Elite unit comes with an included EK-Hub, offering multi-connection with seven sets of addressable RGB LED headers and 4-pin PWM fan headers. The EK-Hub will help you neatly organize the Push-Pull fan configuration.

Technical Specifications

– Radiator Dimensions: 395 x 120 x 27 mm
– Radiator Material: Aluminum
– Fan Compatibility: 120 mm
– Pump Unit Dimensions: 88 x 70 x 64 mm
– Pump Unit Material: Black nickel Housing, Copper Cold plate, Steel Mounting Pump
– Pump Speed Range: 1000 – 3300 RPM ± 10%
– Pump PWM Range: 25 – 100%
– Pump Cable Length: 50 mm
– Pump Unit RGB Type: 5V Digital (Addressable)
– Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm
– Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
– Tubing Length: 400 mm
– Fan Dimensions: 120 x 120 x 25mm
– Fan Speed Range: 550 – 2200 ± 10%
– Fan Noise Level: 36,4dBA (at maximum speed)
– Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
– Fan Air Flow: 66,04 CFM = 112,20 m³/h (at maximum speed)
– Fan Cable Length: 500 mm
– Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground
– Fan RGB Cable Length: 50 mm

System Requirements:

– 4-Pin PWM Header for pump and fan operation
– 3-Pin Addressable 5V D-RGB header

Enclosed:

– EK-AIO Elite 360 D-RGB unit
– EK-Vardar S 120ER D-RGB (6pcs)
– EK-Hub PWM + D-RGB
– Tube of Thermal Paste
– Mounting Kit
– User Manual

Mounting kit:

Zip Bag 1:
– 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
– 12x Phillips Head Screw UNC 6-32 x 6mm
– 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:
– 4x Thumb nut (Intel /AMD)
– 4x Mounting thumb screw for INTEL LGA 115x / AMD AM4 socket
– 4x Mounting thumb screw for Intel LGA 20XX socket
– 4x Spring
– 4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets)

Zip Bag 3:
– 1x Intel LGA 115x Backplate
– 2x Intel mounting bracket
– 2x AMD mounting bracket

CPU Socket Support:

– Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, 1200
– AMD Sockets: AM4
