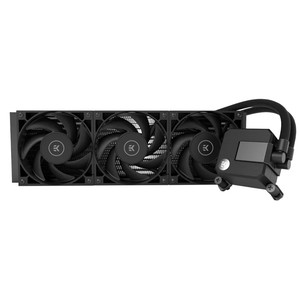

EK-AIO Basic 360 is a non-RGB, price-conscious, all-in-one liquid cooling solution for your CPU. It offers all the water cooling benefits in a compact, easy to install, and maintenance-free design. This EK-AIO comes with a universally compatible CPU water block, along with a pre-filled pump-reservoir combo. It is ready to go straight out of the box. Less fuss, more cooling!

Easy installation with Universal Compatibility – The EK AIO Basic comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs.

Ultra-durable design with diamond-cut rotary fittings  – The EK AIO Basic comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans – Three EK-Vardar S Black Edition fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 – 2200RPM for either high airflow or silent running.

Technical Specifications

– Radiator Dimensions: 395 x 120 x 27 mm
– Radiator Material: Aluminum
– Fan Compatibility: 120 mm
– Pump Unit Dimensions: 88 x 70 x 53 mm
– Pump Unit Material: PETG and ABS Housing, Copper Cold plate, Steel Mounting Pump
– Pump Speed Range: 850 – 2600 RPM ± 10%
– Pump PWM Range: 20 – 100%
– Pump Cable Length: 50 mm
– Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
– Tubing Length: 400 mm
– Fan Dimensions: 120 x 120 x 25mm
– Fan Speed Range: 550 – 2200 ± 10%
– Fan Noise Level: 33,5dBA (at maximum speed)
– Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
– Fan Air Flow: 77 CFM = 131 m³/h (at maximum speed)
– Fan Cable Length: 500 mm

System Requirements:

– 4-Pin PWM Header for pump and fan operation

Enclosed:

– EK-AIO Basic 360 unit
– 3x EK-Vardar S 120 Dark Edition
– Tube of Thermal Paste
– Mounting Kit
– User Manual

Mounting kit:

Zip Bag 1:
– 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
– 12x Phillips Head Screw UNC 6-32 x 6mm
– 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:
– 4x Thumb nut (Intel /AMD)
– 4x Spring

Zip Bag 3:
– 4x Mounting screws (Intel 1150,1151,1155,1156,1200/AMD)

Zip Bag 4:
– 4x Mounting screws (Intel 2011,2011-3,2066)

Zip Bag 5:
– 2x Intel Mounting Bracket

Zip Bag 6:
– 2x AMD Mounting Bracket

Zip Bag 7:
– 5x Mounting screws for Brackets M4x6mm

CPU Socket Support:

– Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066
– AMD Sockets: AM4
