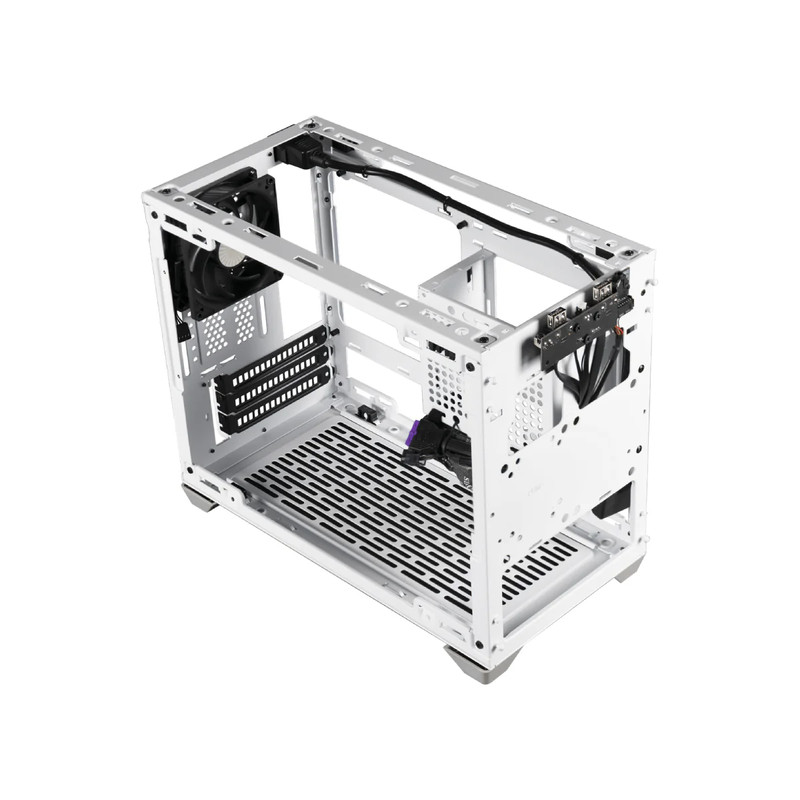

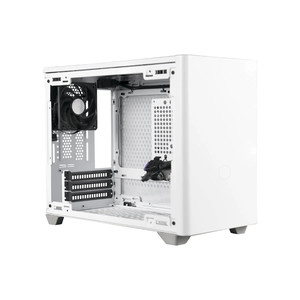

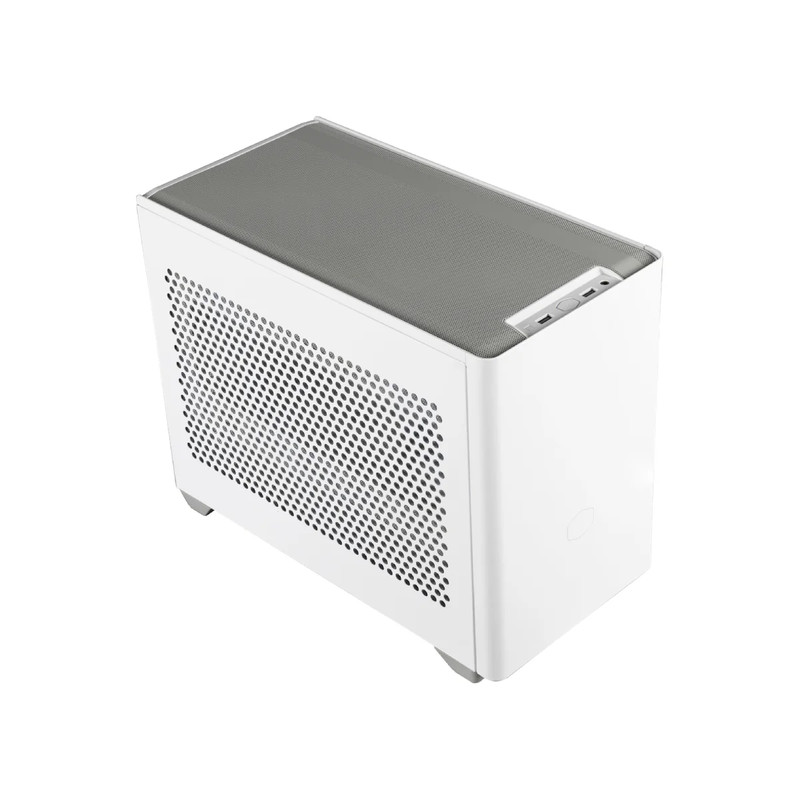

Cooler Master MasterBox NR200 Mini-ITX PC Case – White – صندوق
$86.99
Description:
|
Series |
MasterBox Series |
|
Size |
Mini ITX |
|
Color(s) |
Black, White |
|
Materials |
Steel, Plastic, Mesh |
|
Dimensions (L x W x H) |
376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions |
|
Volume |
18.25L (exlc. Protrusions) |
|
Motherboard Support |
Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H) |
|
Expansion Slots |
3 |
|
5.25″ Drive Bays |
0 |
|
3.5″ Drive Bays |
1 (Max. 2) |
|
2.5″ / 3.5″ Drive Bays (combo) |
1 |
|
2.5″ Drive Bays |
2 (Max. 3) |
|
I/O Panel |
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio + Mic) |
|
Pre-installed Fans – Top |
1x 120mm 650-1800RPM PWM (Sickle Flow) |
|
Pre-installed Fans – Front |
N/A |
|
Pre-installed Fans – Rear |
1x 92mm 650-2300RPM PWM (Sickle Flow) |
|
Pre-installed Fans – Bottom |
N/A |
|
Fan Support – Top |
2x 120mm |
|
Fan Support – Rear |
1x 92mm |
|
Fan Support – Bottom |
2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots) |
|
Fan Support – Side |
2x 120/140mm |
|
Radiator Support – Top |
N/A |
|
Radiator Support – Rear |
92mm (Not Compatible with Vertical GPU Installation) |
|
Radiator Support – Bottom |
120mm, 240mm, (recommended for custom loops only) |
|
Radiator Support – Side |
120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation) |
|
Clearance – CPU Cooler |
155mm, 76mm (GPU in vertical position) |
|
Clearance – PSU |
130mm |
|
Clearance – GFX |
L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) |
|
Dust Filters |
Top, Bottom, Left side, Right side |
|
Power Supply Support |
SFX, SFX-L |
|
Warranty |
2 years |
|
Weight |
4.8 kg |
Note |
Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position |
