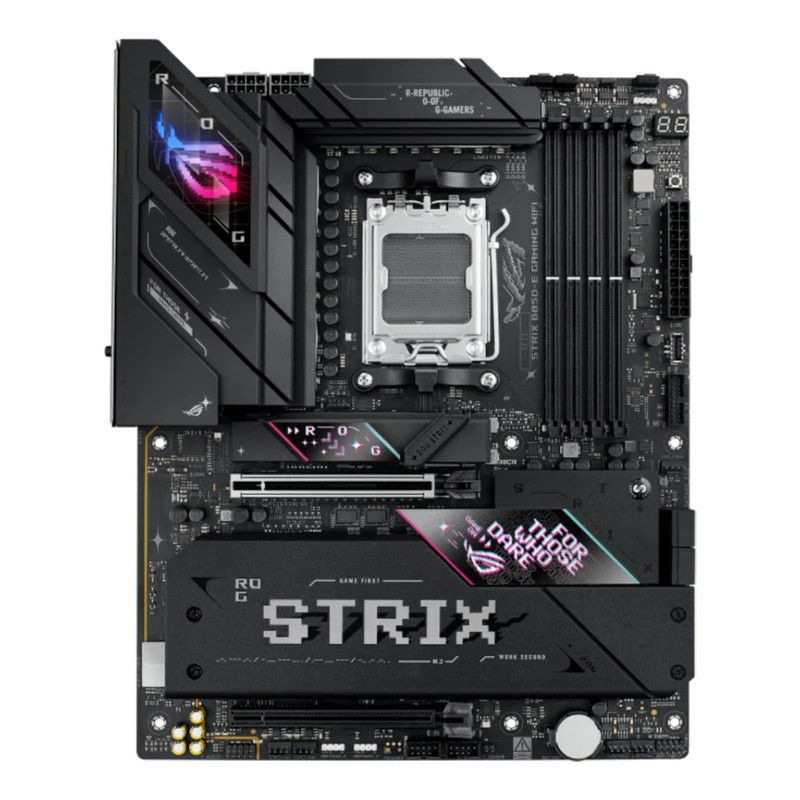

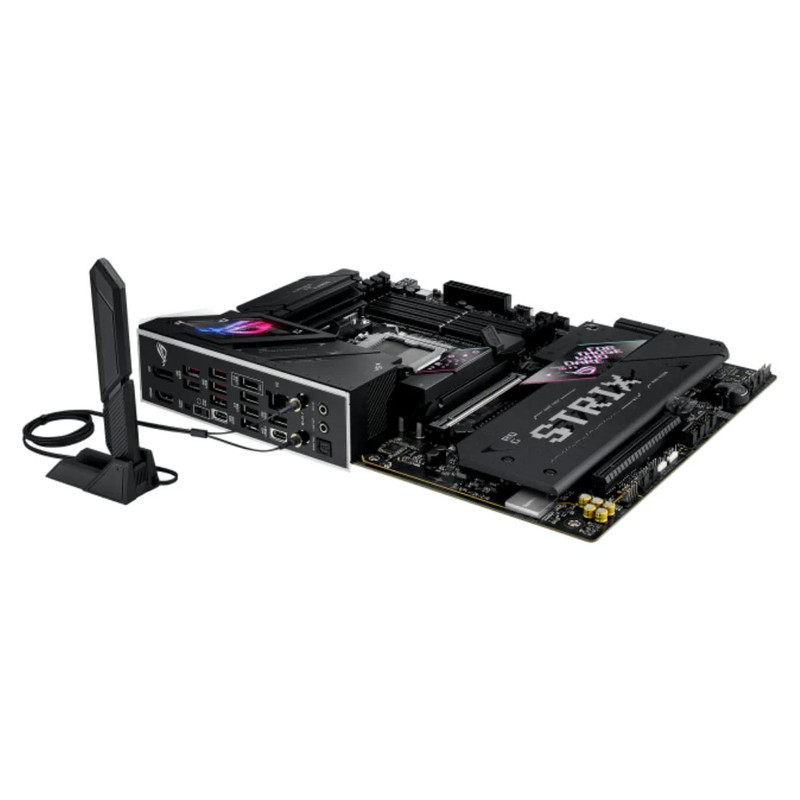

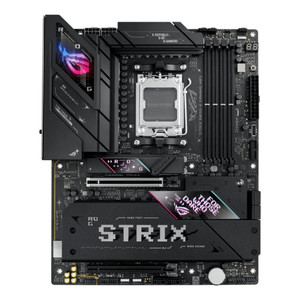

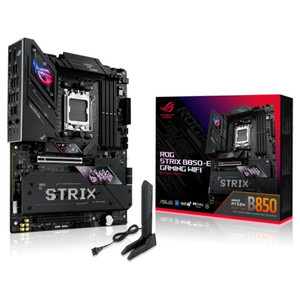

Asus ROG Strix B850-E Gaming Wifi DDR5 AMD ATX Motherboard – اللوحة الأم

Asus ROG Strix B850-E Gaming Wifi DDR5 AMD ATX Motherboard – اللوحة الأم

$470.99

SKU: 1031230597942 Categories: , , , , , , , , ,
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Socket Socket AM5
Back Panel I/O 1 x USB4® (40Gbps)(1 x USB Type-C®)
1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)
6 x USB 10Gbps ports (6 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Memory Slots 4 x DIMM slots, max. 192GB, DDR5
Storage Expansion Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Internal I/O Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
 – Impedance sense for front and rear headphone outputs
 – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
 – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
 – Supports up to 32-Bit/384 kHz playback on front panel

Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Software Windows 11
Dimensions ATX
