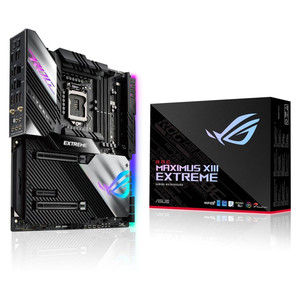

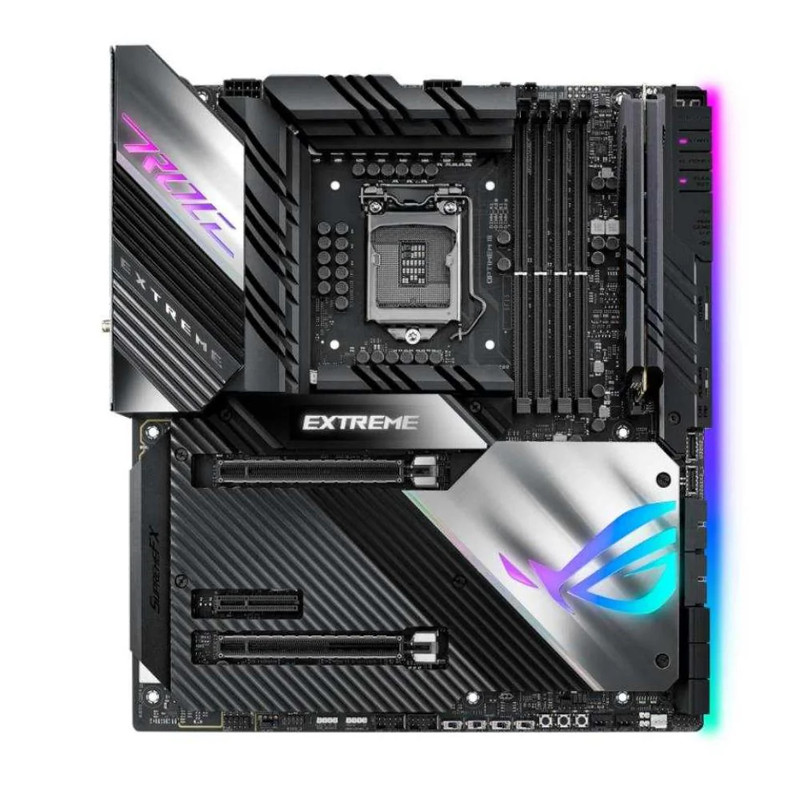

Asus ROG Maximus XIII Extreme – DDR4 LGA 1200 Intel Motherboard – اللوحة الأم

Asus ROG Maximus XIII Extreme – DDR4 LGA 1200 Intel Motherboard – اللوحة الأم

$660.99

SKU: 1031240411292 Categories: , , , , , , , ,

Description:

Intel® Z590 EATX motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2×2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting

– Intel® Socket LGA 1200 for 11th Gen Intel® Core™ processors and 10th Gen Intel Core, Pentium® Gold and Celeron® processors
– Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
– Robust Power Solution: 18+2 teamed power stages – each rated at 100 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
– Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
– High-Performance Networking: Onboard WiFi 6E (802.11ax), Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard
– Fastest Gaming Connectivity: PCIe® 4.0, five M.2 slots, USB 3.2 Gen 2×2 front-panel connector, dual Thunderbolt™ 4 USB-C®
– Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for high-fidelity sound
– Unmatched Personalization: 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
– DIY-Friendly Design: Pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
– Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Maximus xiii extreme:
– ROG Maximus XIII Extreme is fully armed for those wanting to push the latest 11th Gen Intel® Core™ to the very edges of the performance envelope. It features the latest hardware and software that work in unison to optimize your overclocking experience, as well as AI-enhancements and comprehensive cooling controls to give you total command over your build.

Specifications

CPU Socket Socket 1200
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1200

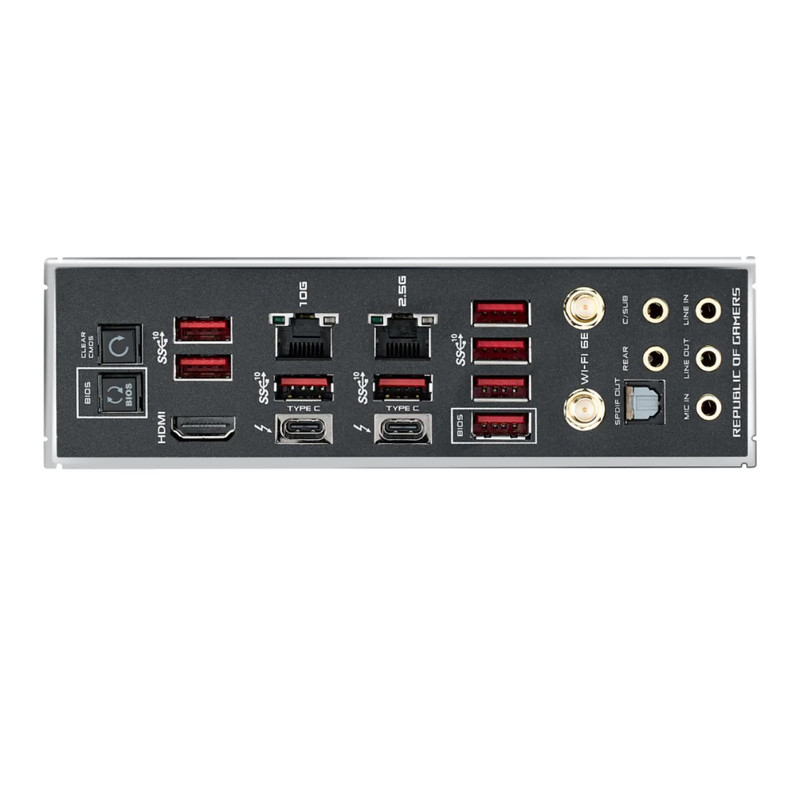

Rear Panel I/O Ports

USB Ports 2 x Thunderbolt 4
8 x USB 3.1
HDMI Port 1 x HDMI 2.0
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antennas

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.2 Type-C header (supports 1 port)
1 x USB 3.1 Type-C header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
2 x Chassis fan headers
2 x Radiator fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x Water In header
1 x Water Out header
1 x Water Flow header
Power Connector Port 1 x 20+4-pin ATX
2 x 8-pin EPS
1 x 6-pin PCIe
Other Connectors 3 x M.2 slots, Key M, Type 2242/2260/2280
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory

Memory Bus Speed 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge Z590
RAID Supported Yes
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 (@ x16 or x8/x8)
1 x PCI Express 3.0 x4

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX ALC4082

Network

Integrated Network Intel I225-V
Marvell AQtion AQC113CS
Network Speeds Supported Intel: Up to 2.5 Gbps
Marvell: Up to 10 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features NVIDIA 2-Way SLI Technology

Physical

Form Factor E-ATX Motherboard
In The Box ROG Maximus XIII Extreme Motherboard
1 x 1-to-3 ARGB Splitter Cable
2 x 1-to-4 fan splitter Cables
1 x RGB Extension Cable
3 x ROG Weave SATA Cables
1 x 3-in-1 Thermistor Cables Pack
1 x ROG Fan Controller
1 x Fan EXT PWR Cable
1 x ARGB Input Cable
1 x USB Input Cable
1 x ROG Fan Controller Velcro Tape
Fan Controller Manual
1 x ROG DIMM.2 with heatsink
1 x M.2 Pad for ROG DIMM.2
2 x M.2 Screw Packages for ROG DIMM.2
1 x ASUS Wi-Fi Moving Antennas
1 x Q-Connector
ROG CLAVIS DAC
ROG Key Chain
ROG Logo Plate Stickers
ROG Multi-Bit Screwdriver
ROG Graphics Card Holder
ROG Stickers
ROG Thank You Card
USB Drive with Utilities & Drivers
User Manual
Width 305 mm
Length 277 mm

Key Features

Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset Intel Z590
Thunderbolt Yes
Motherboard Model ASUS ROG Maximus XIII Extreme
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 5333 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Firewire No
Wireless Network Yes
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support nVIDIA SLi
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor eATX
