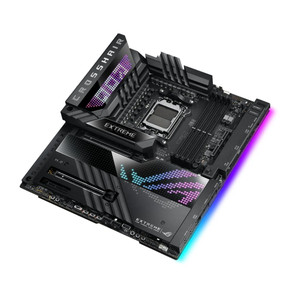

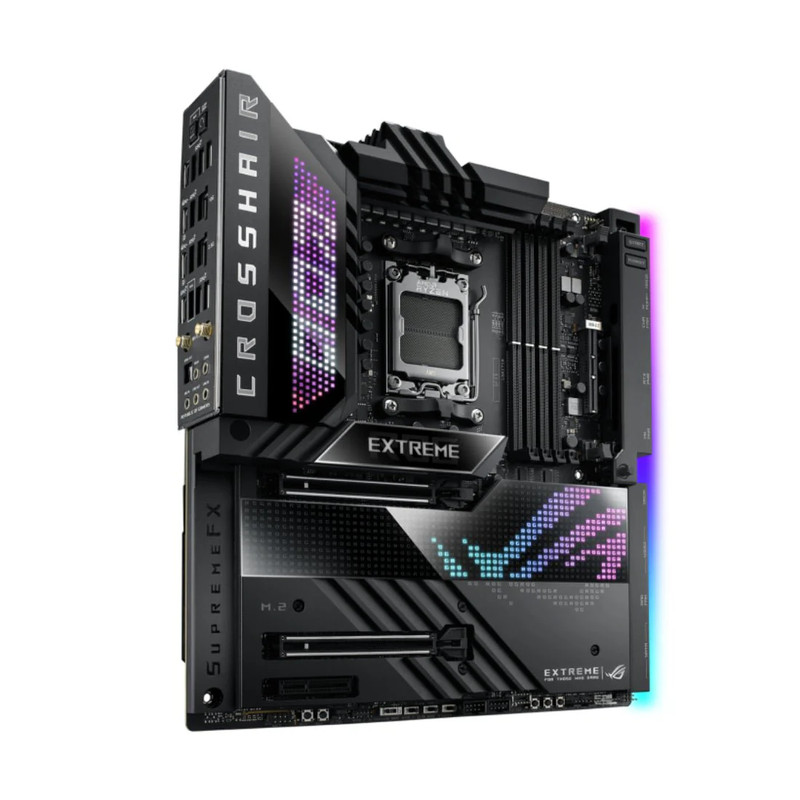

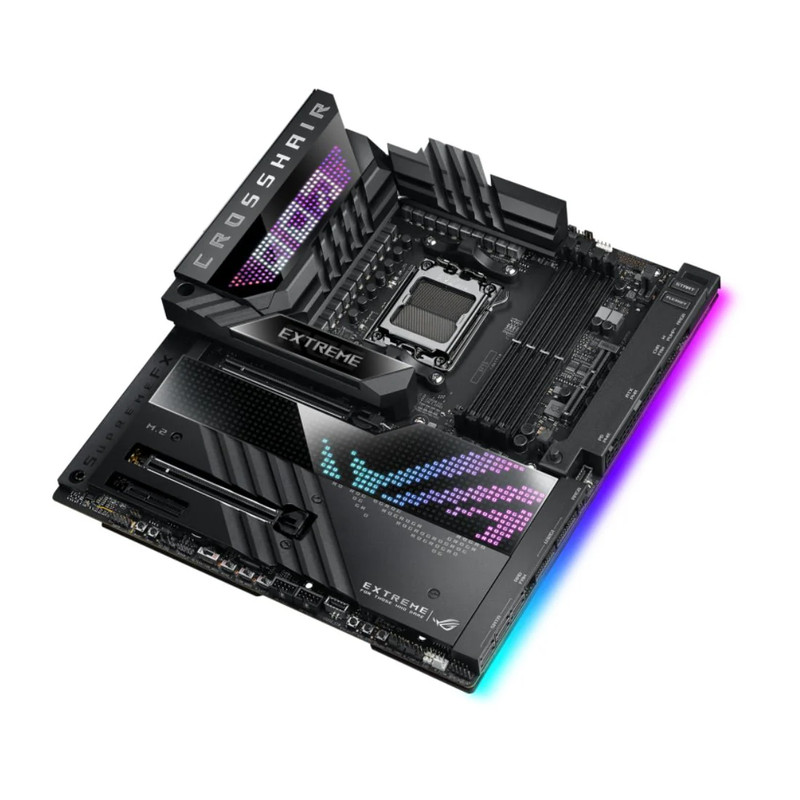

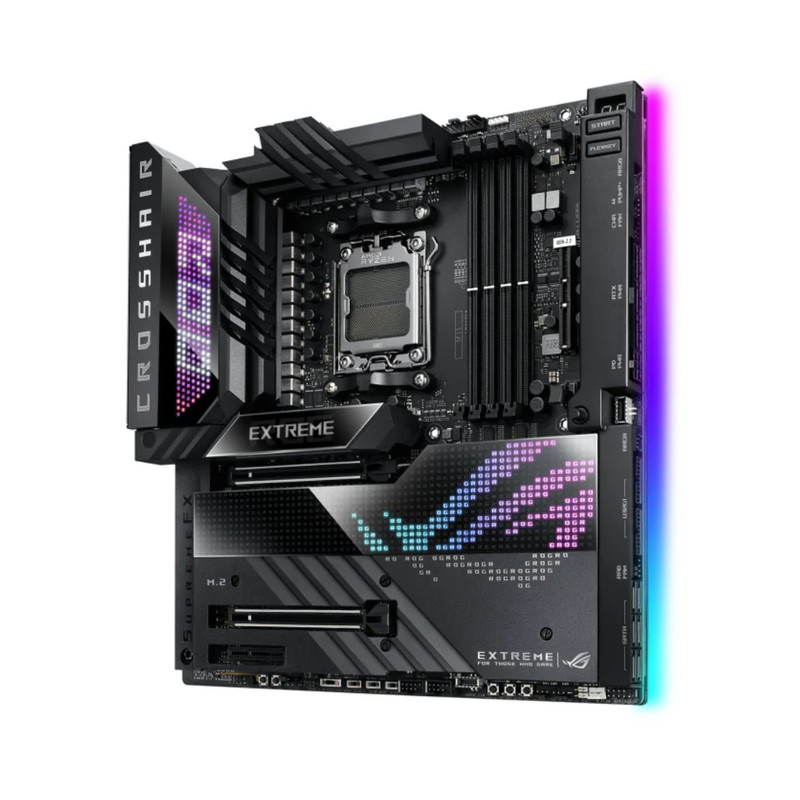

Asus ROG Crosshair X670E Extreme Wi-Fi DDR5 AM5 AMD ATX Gaming Motherboard – اللوحة الأم

Asus ROG Crosshair X670E Extreme Wi-Fi DDR5 AM5 AMD ATX Gaming Motherboard – اللوحة الأم

$960.99

SKU: 103121248110095 Categories: , , , , , , , ,
CPU AMD
Socket AM5
Back Panel I/O 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
5 x LED-illuminated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Memory Slots 4
Storage Expansion 5 x M.2 slots and 6 x SATA 6Gb/s ports
Internal I/O Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
2 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Front Panel I/O Rear USB (Total 12 ports)
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Wireless Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
Software Windows® 11 64-bit, Windows® 10 64-bit
Dimensions ATX
