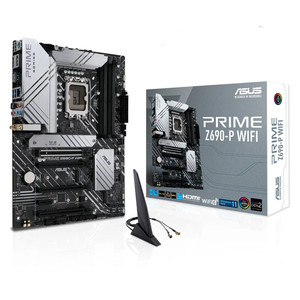

ASUS PRIME Z690-P WIFI LGA1700 ATX DDR5 Motherboard – اللوحة الأم

ASUS PRIME Z690-P WIFI LGA1700 ATX DDR5 Motherboard – اللوحة الأم

$386.99

SKU: 10312614210169 Categories: , , , , ,

Description:

CPU
Chipset Intel Z690
CPU Socket LGA 1700

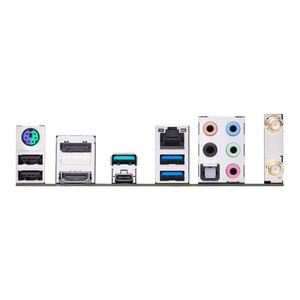

Back Panel I/O
USB 1 x USB 3.2 Gen 2×2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Realtek 2.5Gigabit
PS/2 1 x PS/2
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5 (M.2)
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin Assistant
3 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Header
LED Header 5 x RGB
Diagnostics Clear CMOS
Add-On 1 x Thunderbolt Header
Legacy 1 x Parallel
1 x Serial
BIOS
ROM 192 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec Realtek (7.1-Channel)
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Software
Supported Operating Systems Windows 10 (64-Bit)
Windows 11 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.2 x 12.0″ / 23.4 x 30.5 cm
Packaging Info
Package Weight 3.655 lb
Box Dimensions (LxWxH) 13.4 x 10.7 x 2.8″
