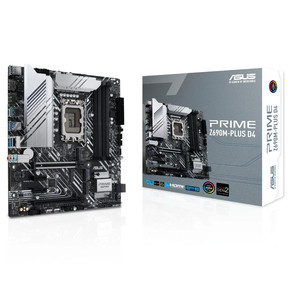

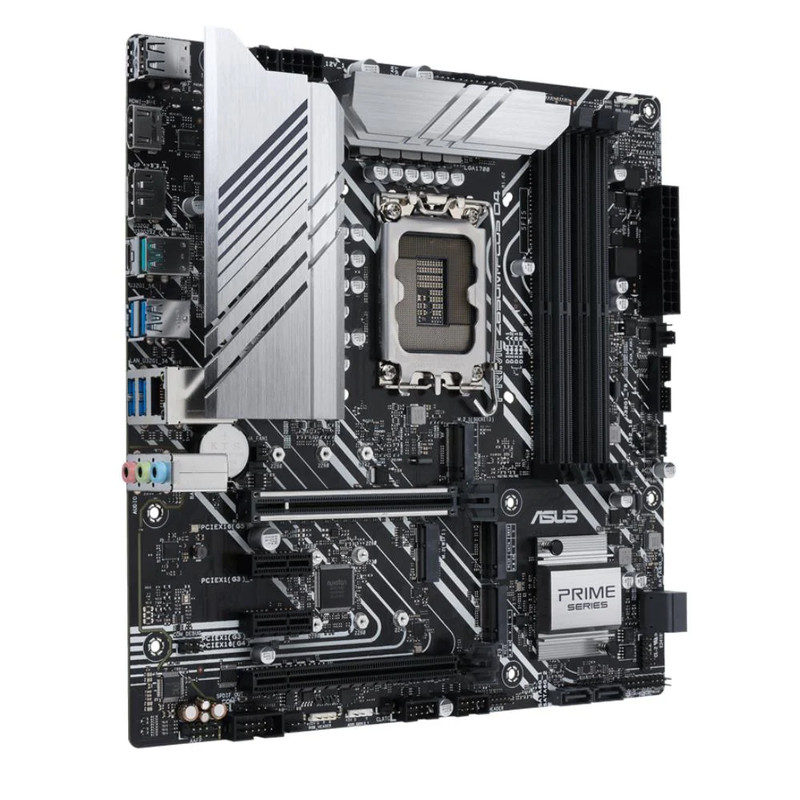

Asus Prime Z690M-Plus -DDR4 LGA 1700 Intel Micro-ATX Motherboard – اللوحة الأم
$314.99
Description:
Intel® Z690 (LGA 1700) mATX mainboard with PCIe® 5.0, three M.2 slots, 10 + 1 DrMOS, DDR4, HDMI®, DisplayPort ™, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Thunderbolt ™ 4 header and Aura Sync RGB lighting.
Features
- Intel® LGA 1700 socket: Ready for Intel® processors of the 12th generation
- Improved power supply: 10 + 1 DrMOS, 4-pin + 8-pin ProCool connector, alloy coils and long-life capacitors for a stable power supply
- Comprehensive cooling: Large VRM heat sinks, PCH heat sinks, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Precise conductor routing and vias as well as optimization of the ground layers to preserve the signal integrity for improved overclocking of the memory
- Next generation connectivity: DDR4, PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt ™ 4 header
Specifications
| Manufacturer number: | 90MB18Q0-M0EAY0 |
| EAN Code | 4711081466055 |
| Mainboard basic properties | |
| Manufacturer | ASUS |
| Chipset | Intel® Z690 |
| Form factor | Micro ATX |
| Motherboard processor | |
| Processor family | Intel |
| Processor socket | Socket 1700 |
| Integrated CPU | no |
| Processors Supported | 12th generation Intel® Core ™ |
| Motherboard memory | |
| Number of DIMM slots | 4x |
| DIMM format | 288-pin DIMM |
| Maximum main memory | 128 GB |
| Storage type | DDR4 |
| supported memory clock | 3,200 MHz, up to 5,333 MHz using OC |
| Mainboard expansion slots | |
| PCI-Express x16 (total) | 2x |
| PCI-Express 5.0 x16 | 1x |
| PCI-Express 4.0 x16 | 1x |
| PCI-Express x1 | 2x (3.0) |
| M.2 | 3x |
| Mainboard external connections | |
| DisplayPort | Yes |
| HDMI | Yes |
| USB 3.2 Type-C | 1x |
| USB 3.1 Type-A | 1x |
| USB 3.0 | 4x |
| USB 2.0 | 2x |
| Ethernet (LAN) | 1 x |
| 3.5mm jack | 3x |
| Mainboard internal connections | |
| SATA 6 GB / s | 4x |
| USB 3.1 header | 1x (Type-C) |
| USB 3.0 header | 1 x |
| USB 2.0 header | 2 x |
| Thunderbolt header (13-pin) | Yes |
| Serial | Yes |
| TPM header | Yes |
| Chassis intrusion header | Yes |
| RAID | 0/1/5/10 |
| Power connections | 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V |
| Audio channels | 7.1 |
| Mainboard cooling | |
| 4-pin CPU fan | 2x |
| Case fan 4-pin | 3x |
| 4-pin pump | 1x |
| Mainboard lighting | |
| 4-pin RGB header | 1x |
| 3-pin ARGB header | 3x |
| Mainboard network | |
| LAN controller | Gb LAN (Intel I219-V) |
| Transfer rate | 10/100/1000 Mb / s |
| Mainboard peculiarities | |
| Audio + solid capacitors | Yes |
| colour | |
| Base color | White |
| State | |
| Item condition | New |
