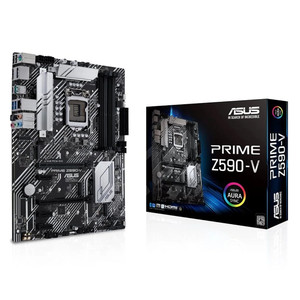

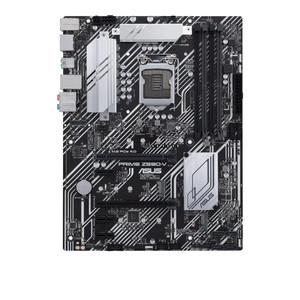

Asus Prime Z590-V – DDR4 LGA 1200 Intel Motherboard – اللوحة الأم

Asus Prime Z590-V – DDR4 LGA 1200 Intel Motherboard – اللوحة الأم

$269.99

SKU: 1031240514115 Categories: , , , , ,

Description:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-V provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

Cool to the Core

Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Build on a Solid Foundation

Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime Z590-V is geared to cater to the demands of these high-core count CPUs.

ProCool Connector

Proprietary connector augment the motherboard’s link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.

Small Details Make a Big Difference

Prime Z590 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.



Specifications

Model

Brand ASUS
Model PRIME Z590-V

Supported CPU

CPU Socket Type  LGA 1200
CPU Type Supports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*

* Refer to www.asus.com for CPU support list.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets

Chipset  Intel Z590

Onboard Video

Onboard Video Chipset  Supported only by CPU with integrated graphic

Memory

Number of Memory Slots 4×288pin
Memory Standard DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported 128GB
Channel Supported  Dual Channel

Expansion Slots

PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot*

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Supports x4 mode.
PCI Express x1 3 x PCIe 3.0 x1
Other Slots V-M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

Storage Devices

SATA 6Gb/s  4 x SATA 6Gb/s
M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Intel Optane Ready To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Onboard Audio

Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels

Onboard LAN

LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps

Rear Panel Ports

Back I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Onboard USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header

Physical Spec

Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.2″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Windows Compatibility

Windows 11 Supported

Features

Features Special Features:
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– ProCool
AURA Sync
– AURA RGB headers
– Addressable Gen 2 RGB headers

Software Features:
ASUS Exclusive Software
Armoury Crate
– AURA Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS:
192 (128+64) MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit

Packaging

Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual
