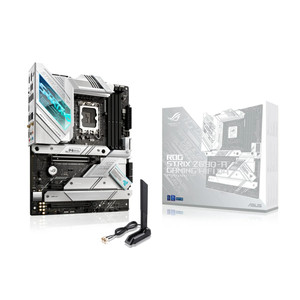

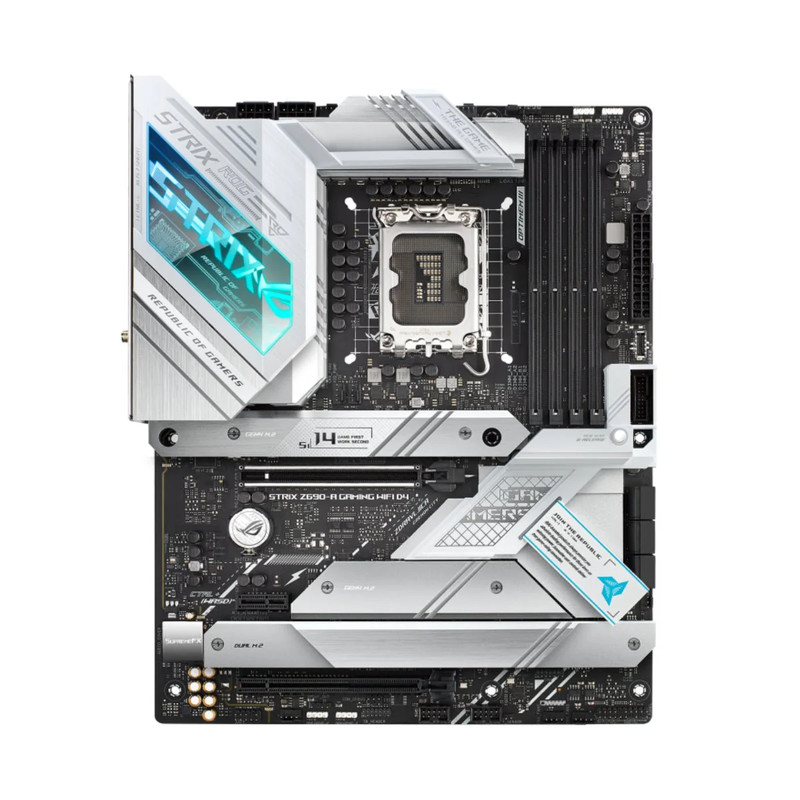

Name: Asus Intel Z690 ROG Strix Z690-A D4 PCIe 5.0 ATX Gaming WiFi Motherboard - اللوحة الأم
SKU: 10312613814102
Availability: InStock

Description:

Intel^®Z690 LGA 1700 ATX motherboard with PCIe^®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel^®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe^®SSD support, M.2 backplate, PCIe^®Slot Q-Release, USB 3.2 Gen 2×2 Type-C^®, SATA and AURA Sync RGB lighting

Intel^® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C^®
Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: PCIe^®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound and Sonic Studio III
Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Specification

Edition	ROG STRIX Z690-A GAMING WIFI D4
Form Factor	ATX
CPU Socket	1700
Chipset	Intel Z690
RAM Memory Support
Memory Type	DDR4
Memory Channel	Dual (2)
Memory Type (ECC)	Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR4 – 2133
	DDR4 – 2400
	DDR4 – 2666
	DDR4 – 2800
	DDR4 – 2933
	DDR4 – 3000
	DDR4 – 3200
	DDR4 – 3300(OC)
	DDR4 – 3333(OC)
	DDR4 – 3400(OC)
	DDR4 – 3466(OC)
	DDR4 – 3600(OC)
	DDR4 – 3733(OC)
	DDR4 – 3866(OC)
	DDR4 – 4000(OC)
	DDR4 – 4133(OC)
	DDR4 – 4266(OC)
	DDR4 – 4400(OC)
	DDR4 – 4500(OC)
	DDR4 – 4600(OC)
	DDR4 – 4700(OC)
	DDR4 – 4800(OC)
	DDR4 – 5000(OC)
	DDR4 – 5333(0C)
Max. Memory Capacity	128GB (4x32GB)
Audio
Audio	ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface	PCIe 5.0 (x16)
NVIDIA SLI Support	N/A
AMD CrossFire Support	N/A
Integrated Graphics	Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors	None
Internal Connectivity
Expansion Slots	1 x M.2, 22-42/60/80, PCIe Gen4x4
	1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
	2 x M.2, 22-42/60/80/110, PCIe Gen4x4
	1 x PCIe 3.0 x1
	1 x PCIe 3.0 x16
	1 x PCIe 5.0 x16
SATA Support	N/A
RAID Support via	SATA
Storage Mode Support	Intel Rapid Storage Technology Support
	RAID 0
	RAID 1
	RAID 10
	RAID 5
Internal I/O	1 x 24-pin (Power)
	1 x 4-pin AIO_PUMP Connector
	5 x 4-pin CHA_FAN connector
	1 x 4-pin CPU Fan Connector
	1 x 4-pin CPU OPT Fan Connector
	2 x 8-pin (Power)
	3 x Addressable Gen 2 Header
	1 x Aura RGB Header
	1 x Clear CMOS Header
	1 x CPU_OV
	1 x Front Panel Audio Header
	1 x S/PDIF-Out Header
	6 x SATA III – 6Gb/s
	1 x System Panel Connector with Chassis Intrusion
	1 x Temperature Sensor Header
	1 x Thunderbolt header
	1 x TPM (SPI_TPM) header
	2 x USB 2.0 Header
	1 x USB 3.2 Gen1 Header
	1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type	802.11ax WiFi LAN
Network Interface Type	Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules	1 x 802.11ax WiFi + BT5.2
Network Chip/Modules	1 x Intel (2.5GbE LAN)

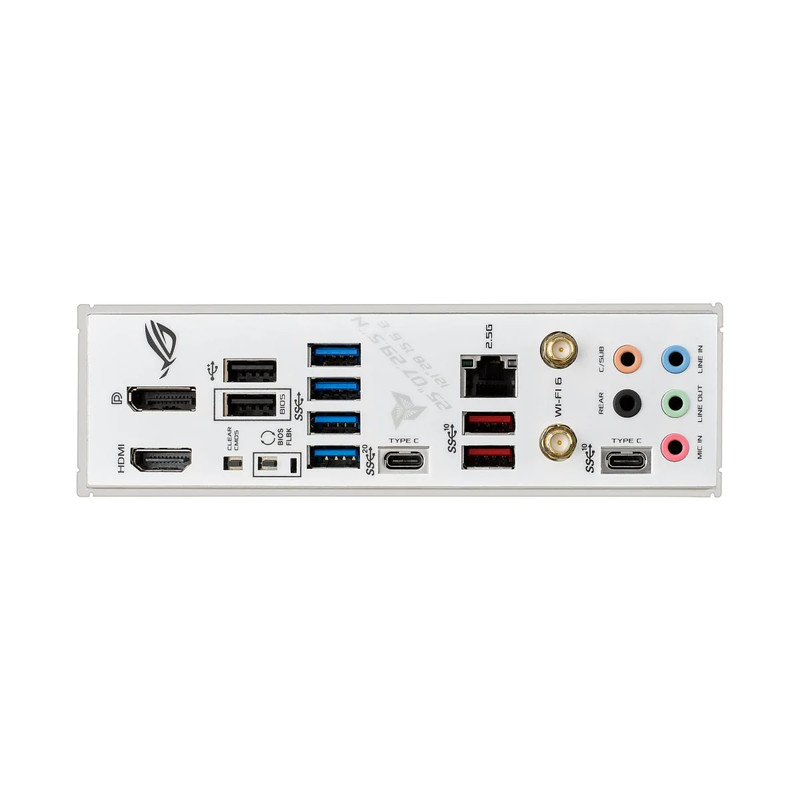

Rear I/O Connectors	1 x 10/100/1000/2500 (LAN)
	5 x Audio I/O
	1 x BIOS Flashback Button
	1 x Clear CMOS Button
	1 x DisplayPort
	1 x HDMI
	2 x USB 2.0
	4 x USB 3.2 Gen1 Type-A
	2 x USB 3.2 Gen2 Type-A
	1 x USB 3.2 Gen2 Type-C
	1 x USB 3.2 Gen2x2 Type-C
	1 x WiFi Module
Additional Specifications
Water Cooled	No
Cooling
QPI Speed	N/A
Board Dimensions	244 x 244 x 50 mm
Note
Additional Information
Scan Code	LN120785
Model Number	ROG STRIX Z690-A GAMING WIFI D4
GTIN	4711081446460
